SOLUTION

FEATURES:

This machine is the compact packaging machine for liquid and paste, which emphasizes its versatility, good performance and easy maintenance. The full-axis servo control manages the data including the pouch size, sealing temperature, filling volume and the timing of each drive axis, and the data of 100 or more products can be stored. The touch panel shows the menu items, such as the "administrative items", "data storage" and "initial settings", which are colored by different usage, and it has perfect performance. Equipped with the film position correcting device, it makes the feeding of various film more stable. The driving section is visible through the clear cover. Each heat roller can be easily maintained from the front or rear of the machine. And more convinient point is the entire cutter device can be taken out by releasing four locks, so that the overhaul can be easily done.

APPLICATION:

This machine is broadly used in packaging liquid soup,cosmetics,cleansing liquid and mayonnaie,which require high filling precision.

SPECIFICATIONS:

Filling Product	Liquid & Paste
Pouch Pattern	3-side seal & 4-side seal
Pouch Height Range	2divisions 100-200mm 3divisions 80-150mm 4divisions 55-100mm 5divisions 45-80mm 6divisions 40-60mm According to the width of horizontal sealing pouch height range is different.
Pouch Width	25-130mm ※4-side seal when pouch width is 130mm
Packaging Capacity	20-300 pouches per minute (depending on pouch height,film composition,product property,etc)
Filling Capacity	1-200ml (depending on product property and filling device to be used)
Applicable Film Width	50-260mm
Maximum Film Roll Dia	￠400mm
Power Consumption	3-phase 380V 6.5kw
Air Consumption
Machine Dimensions	1117mm(L)×942mm(W)×2035mm(H)
Machine Weight	Approx.700kg

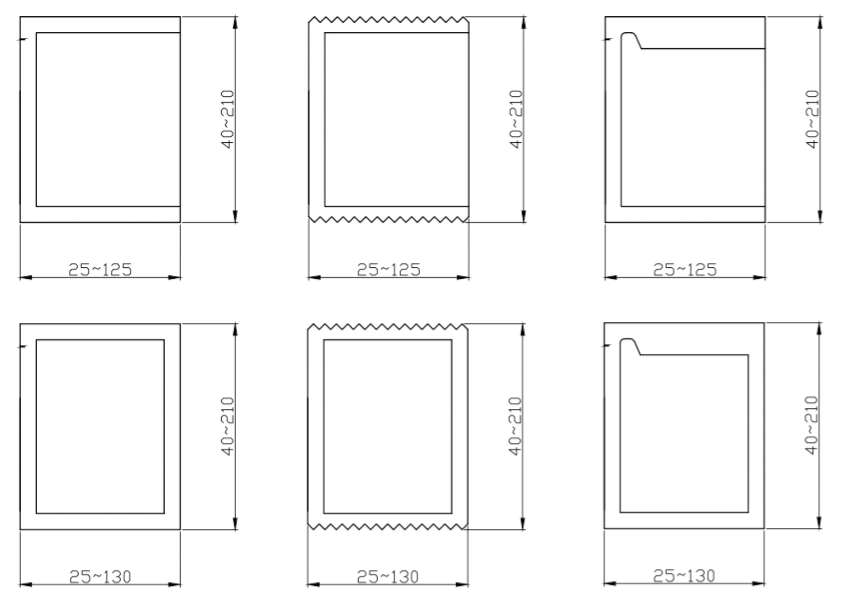

PACKAGING STYLE:

日韩一区二区三免费高清_精品乱码久久久久久久_久久精品麻豆日日躁夜夜躁妓女_国产精品久久久久aaaa_97视频在线观看播放

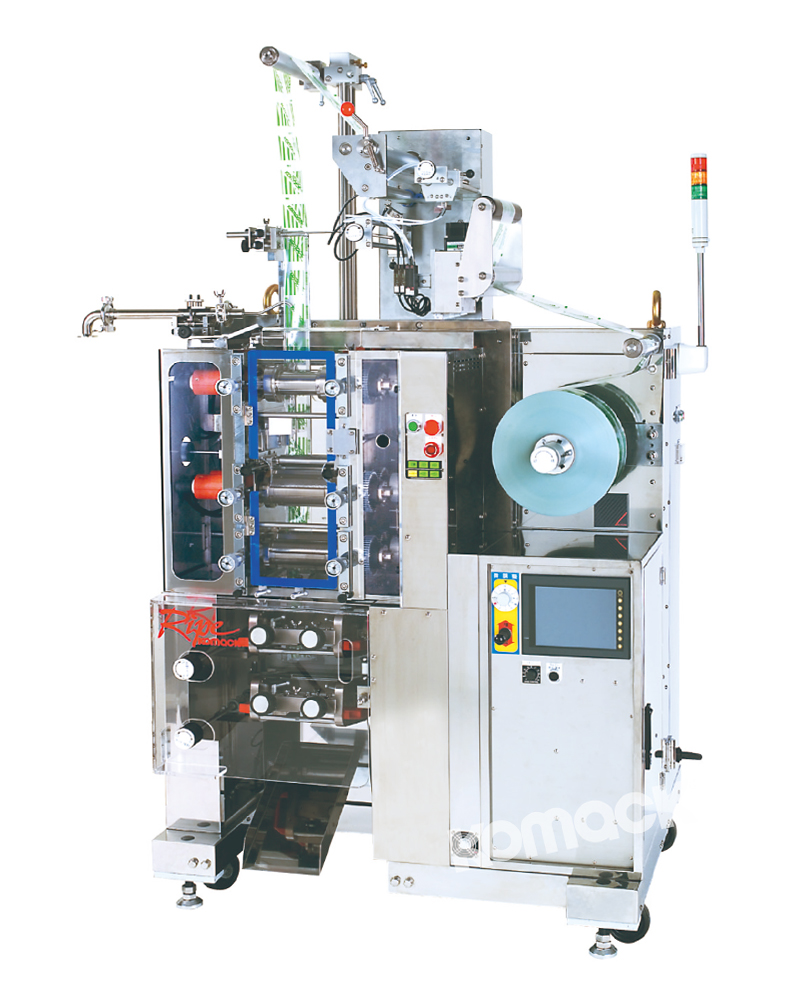

ERL-1300 HIGH SPEED LIQUID & PASTE AUTOMATIC FILLING & PACKAGING MACHINE
